100MP Full-Frame LD Series
| Model | LD5028-100MP |
|---|---|
| Product family | FA Lenses |
| Series | 100MP Full-Frame LD Series |
| Sensor format | Full frame (3.1µm) |
| Focal length | 50mmmm |
| Aperture range | F2.8 |
| Working distance | 150mm–∞ |
| Image circle | φ46mm (3.1µm) |
| Resolution | 160 lp/mm |
| Mount | M42 / M58 / M72 / F |
3D CAD models (STP / IGS) and the measured MTF / distortion test report for LD5028-100MP are sent on request — tell us the pixel size and working distance you need.
Send your camera model, field of view and working distance — we reply with a selection proposal and test data within one business day.

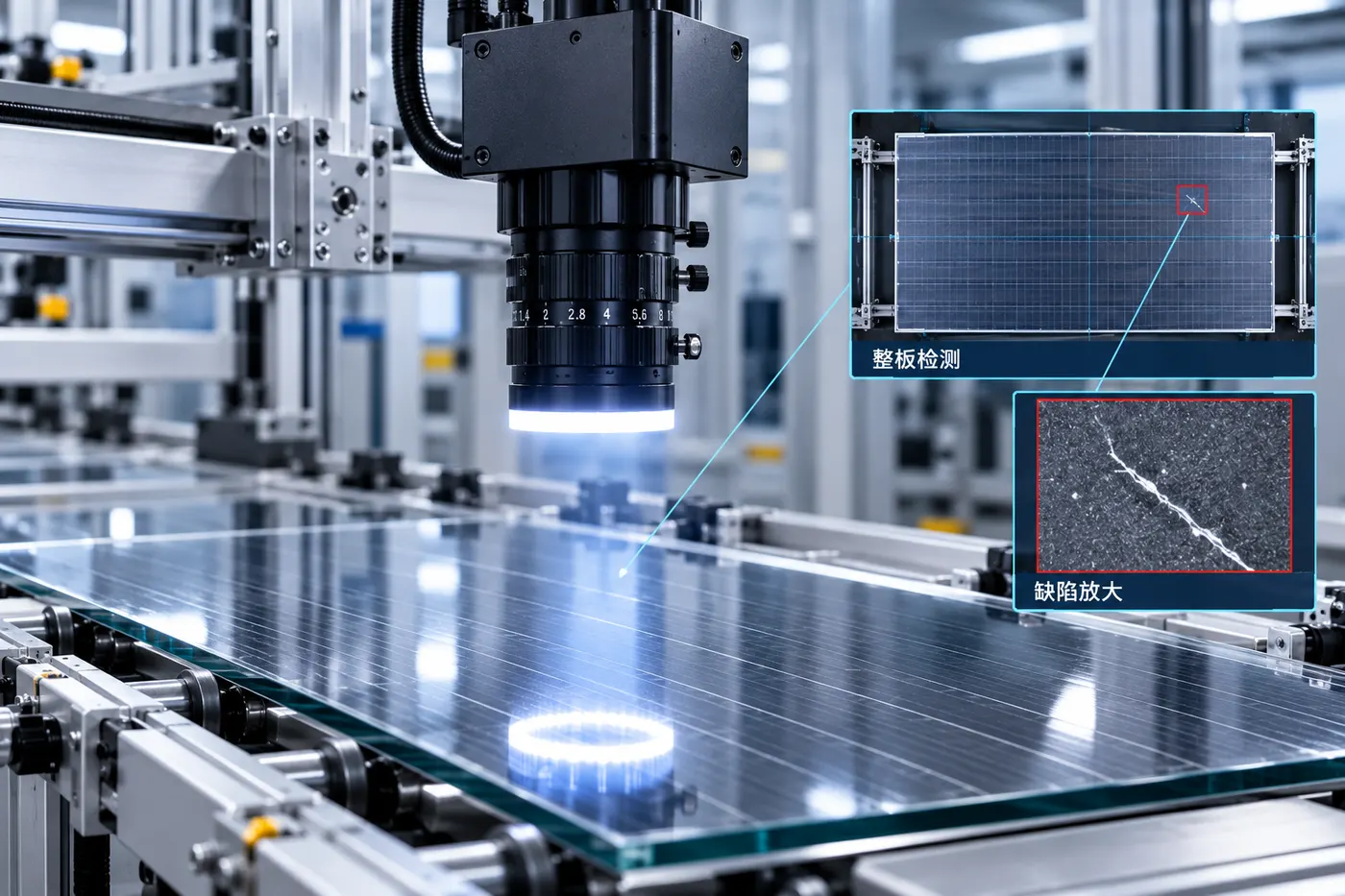

100MP full-frame imaging replaces multi-camera arrays on the largest inspection surfaces.

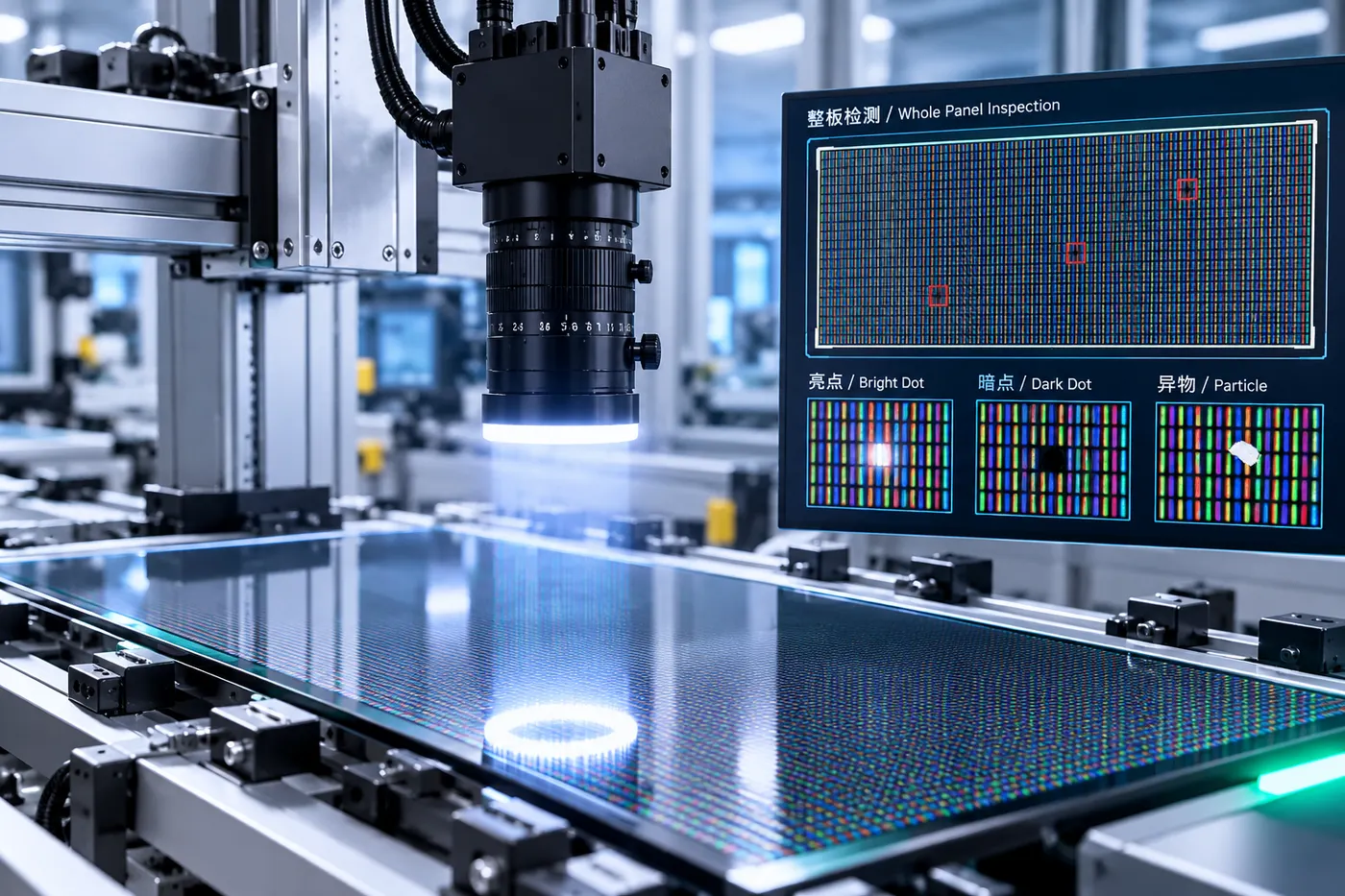

Full-surface micro-defect inspection up to Gen 8.5 panels in a single shot.
Wafer and lead-frame inspection at 3.1µm pixel pitch.
Single-shot electrode and separator imaging at full web width.
Low-distortion geometry measurement over large fields of view.
A lens rarely fails on its own — it fails because the light, the camera interface or the mechanics were chosen in isolation.
High-uniformity coaxial or line light — at 3.1µm pixels, illumination variation shows up as measurement drift.
A 100MP full-frame camera with M42 / M58 / M72 or F mount matched to the φ46mm image circle.
Bandpass filtering to stabilise contrast on reflective webs and glass.
Rigid mounting — at 160 lp/mm, sub-pixel vibration is visible.
Click any model number to open its own specification page.
| Model | Focal length | Aperture | Image circle | Working distance | Resolution | Mount |
|---|---|---|---|---|---|---|
| LD3528-100MP | 35mmmm | F2.8 | φ46mm (3.1µm) | 100mm–∞ | 160 lp/mm | M42 / M58 / M72 / F |
| LD5028-100MP | 50mmmm | F2.8 | φ46mm (3.1µm) | 150mm–∞ | 160 lp/mm | M42 / M58 / M72 / F |
| LD8035-100MP | 80mmmm | F2.8 | φ46mm (3.1µm) | 250mm–∞ | 160 lp/mm | M42 / M58 / M72 / F |
