LS1607B — full specifications, dimensioned drawing and a free datasheet download. Manufactured by CLARIOPTICS with in-house optical design and our own metal factory.
16K Line Scan Lenses (I) - 16K5µm
| Model | LS1607B |
|---|---|
| Product family | Line Scan Lenses |
| Series | 16K Line Scan Lenses (I) - 16K5µm |
| Sensor format | Ø82 |
| Focal length | 116 |
| Aperture range | 3.2 |
| Magnification | 0.75X |
| Working distance | 224 |
| Mount | M42/M58/M72/M90/M95 |
| Note | Mag. range 0.7-0.85 |
| Note | WD range 206-235 |
Free to download — no form, no sign-up. Includes full specifications and the dimensioned mechanical drawing. Measured MTF and distortion data is available on request.
Send your camera model, field of view and working distance — we reply with a selection proposal and test data within one business day.

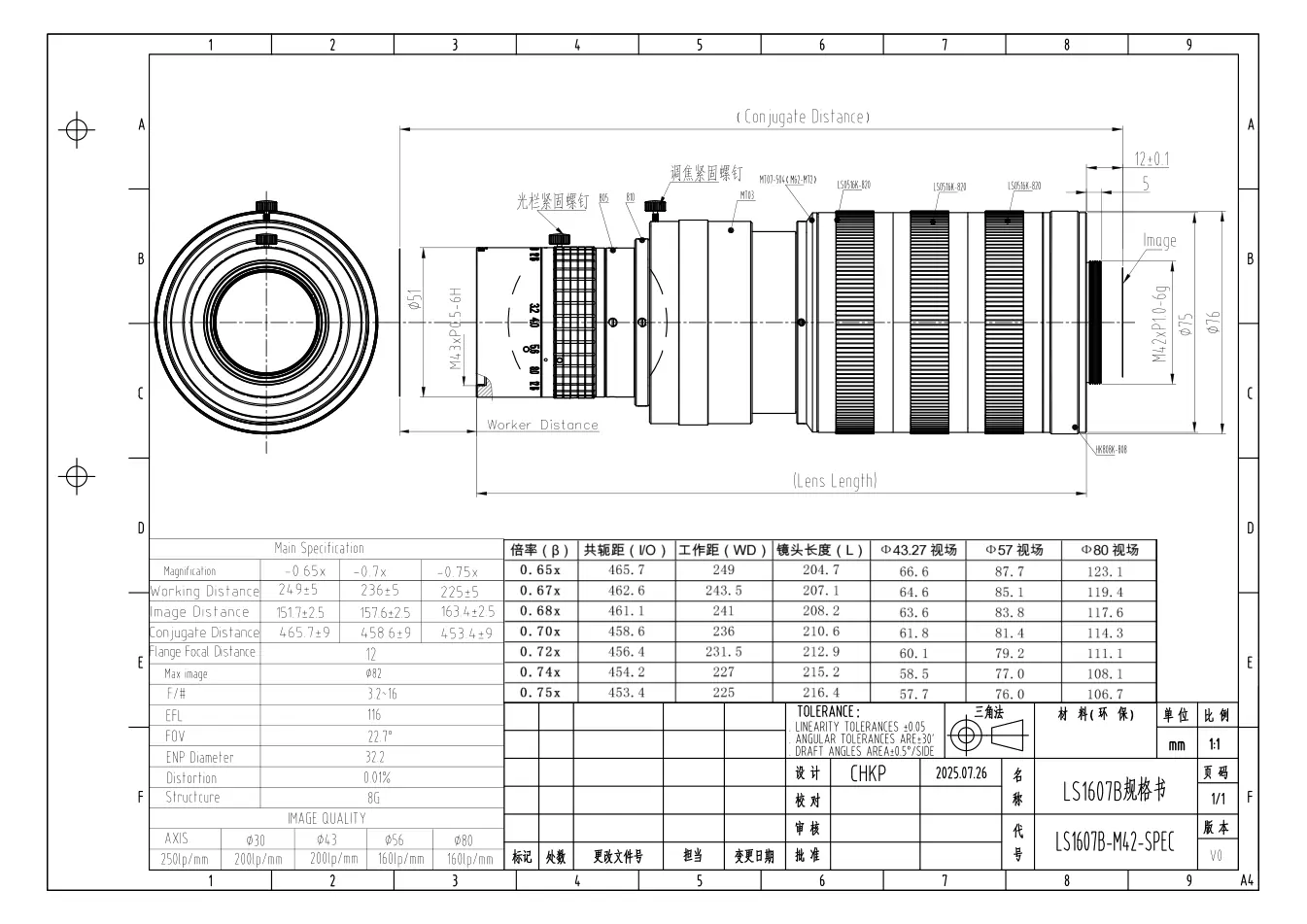

Preview of the official LS1607B specification sheet — outer dimensions, flange-back, thread sizes and the complete parameter table.
The drawing below is the mechanical outline and specification table from the LS1607B datasheet — use it to check the mount, flange distance and lens envelope against your housing before you order. Per-model MTF and distortion data is issued with the full datasheet and can be supplied as a signed test report.

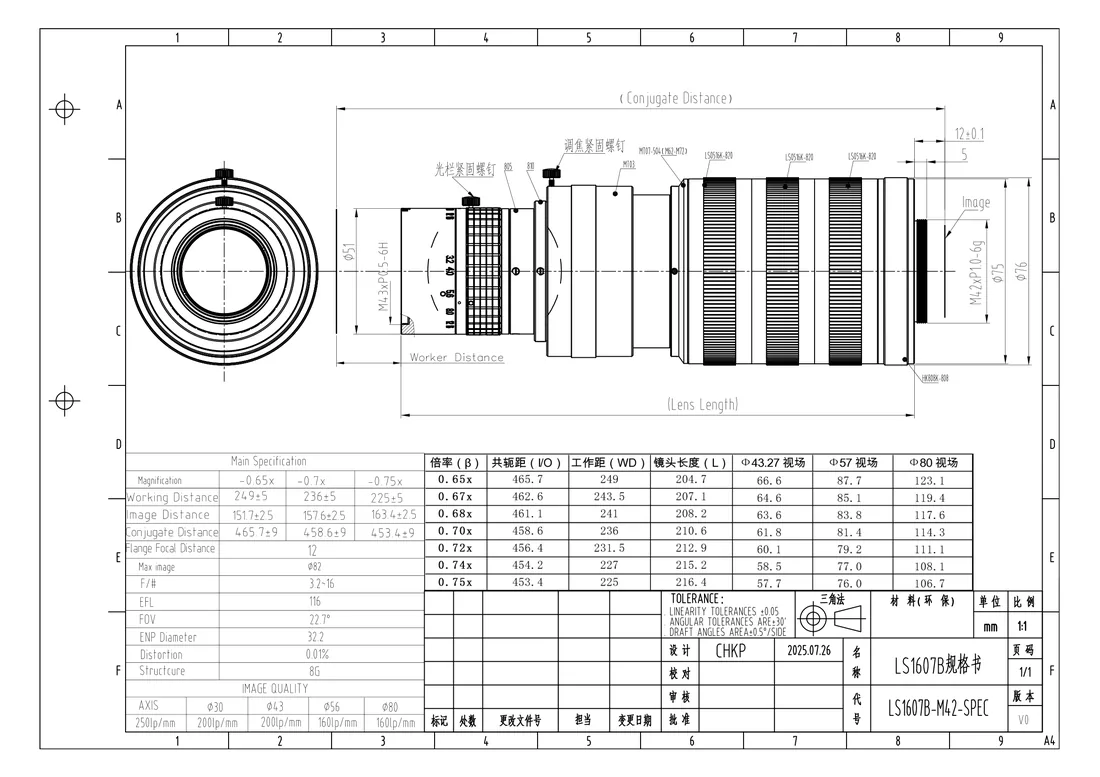

Dimensional drawing and specification table — LS1607B datasheet. Full-size PDF, 3D model and measured MTF / distortion test reports are available on request.
MTF is measured on an optical transfer function instrument covering 0–500 lp/mm (visible / NIR) and 0–60 lp/mm (LWIR), with on-axis accuracy better than ±2%.
Distortion is controlled across the series; Distortion is measured to better than 0.25% accuracy, so the figure in the datasheet is usable directly in your measurement model.
Production units can ship with a signed test report from our CMA / CNAS accredited optical testing center — specify the test items when you order.
Electrode coating, separator and tab welding inspection at full web speed.
Cell and module EL inspection, glass ribbon and micro-crack detection.
Pinholes, gels, coating streaks and thickness variation on continuous webs.
Register error, colour shift and bar-code verification at high line rates.
A lens rarely fails on its own — it fails because the light, the camera interface or the mechanics were chosen in isolation. Here is what we recommend checking before you order.
A high-uniformity LED line light matched to the scan width. Line scan imaging is unforgiving of illumination falloff — specify the light together with the lens.
A M42 / M58 / M72 / M90 / M95 line scan camera. Confirm the sensor length against the lens image circle before ordering.
Encoder or trigger cabling sized to line rate; the lens MTF must hold at your actual pixel clock, not just at DC.
A stable mount with tip/tilt adjustment. At high spatial frequencies a few microns of tilt costs visible resolution.
Click any model number to open its own specification page.
| Model | Sensor | Focal length | Aperture | Magnification | Mount |
|---|---|---|---|---|---|
| LS1602A | Ø90 | 146 | 3.8 | 0.26X | M42/M58/M72/M90/M95 |
| LS1602B | Ø82 | 116 | 3.2 | 0.26X | Multi |
| LS1603B | Ø82 | 116 | 3.2 | 0.33X | Multi |
| LS1605A | Ø90 | 146 | 3.8 | 0.5X | M42/M58/M72/M90/M95 |
| LS1605B | Ø82 | 116 | 3.2 | 0.5X | M42/M58/M72/M90/M95 |
| LS1607A | Ø90 | 146 | 3.8 | 0.75X | M42/M58/M72/M90/M95 |
| LS1607B | Ø82 | 116 | 3.2 | 0.75X | M42/M58/M72/M90/M95 |
| LS1610A | Ø90 | 116 | 3.8 | 1.0X | M42/M58/M72/M90/M95 |
| LS1613A | Ø90 | 146 | 3.8 | 1.33X | M42/M58/M72/M90/M95 |
| LS1620A | Ø90 | 146 | 3.8 | 2.0X | M42/M58/M72/M90/M95 |
| LS1620B | Ø82 | 116 | 3.2 | 2.0X | Multi |
| LS1630A | Ø90 | 146 | 3.8 | 3.0X | M42/M58/M72/M90/M95 |
| LS1630B | Ø82 | 116 | 3.8 | 3.0X | Multi |
| LS1633A | Ø90 | 146 | 3.8 | 0.33X | M42/M58/M72/M90/M95 |
