Six product families spanning 2/3″ to 1.2″ sensors, 4K–16K line scan, 100MP full frame and 360° wall inspection. Every model ships with a datasheet and 3D CAD (STP / IGS).
2/3″ standard, 2/3″ value and 1/1.7″ series, 4–75mm, TV distortion down to <0.05%, C-mount.
Specifications & models →
8–75mm for 20MP cameras; each model also covers 1″, 2/3″ and 1/2″ sensors.
Specifications & models →
MC macro 0.1X–0.8X ultra-low distortion; 1.2″ 25MP series up to 100mm.
Specifications & models →
SAM 1.1″ value line 16–75mm; DFA stepper-motor focus/iris for mixed-model lines.
Specifications & models →
φ32–φ90mm image circles, 63–200 lp/mm, five mount options, magnification 0.01X–3X.
Specifications & models →
Full-circumference imaging of cylinders and bores, Φ3–200mm, built-in light options.
Specifications & models →
Optical structural parts machined in our own metal factory — barrels, housings, mounts and custom opto-mechanical components. 300+ CNC machines, 2–500mm, ±0.005mm.
Service details →

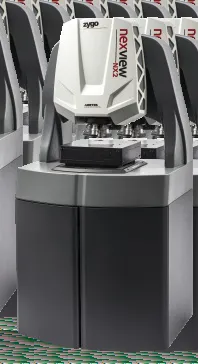

From a production problem to a lens that solves it: optical design, tolerance analysis and mechanical integration done in-house — first samples in 3–4 weeks.
Service details →
MTF, distortion, wavefront, transmission and environmental testing in our CMA/CNAS accredited optical center — inspection reports ship with every production lot.
Service details →Full-frame 100MP lenses for 3.1µm pixels with a φ46mm image circle and 160 lp/mm center resolution — one station replaces multi-camera arrays on FPD, semiconductor and lithium battery lines.
| Model | EFL | F.No | Image Circle | WD | Resolution | Mount |
|---|---|---|---|---|---|---|
| LD3528-100MP | 35mm | 2.8 | φ46mm (3.1µm) | 100mm–∞ | 160 lp/mm | M42 / M58 / M72 / F |
| LD5028-100MP | 50mm | 2.8 | φ46mm (3.1µm) | 150mm–∞ | 160 lp/mm | M42 / M58 / M72 / F |
| LD8035-100MP | 80mm | 2.8 | φ46mm (3.1µm) | 250mm–∞ | 160 lp/mm | M42 / M58 / M72 / F |
Tell us which models you are evaluating — we will send datasheets, 3D CAD models and a working-distance/magnification cross table within one business day.
